Removing upper control arm

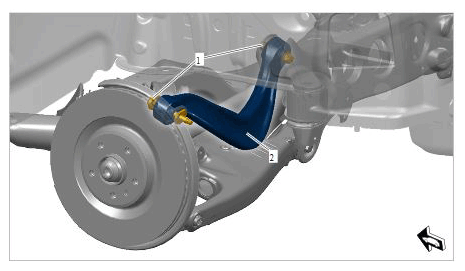

G11985034

Upper control arm

  1. Mark the position of the eccentric screw with respect to the wheel bearing housing for re-installation.
  2. Unscrew fastening screws for the control arm -2-  at the chassis subframe and at the wheel bearing housing (eccentric screw) -1-.
  3. Remove control arm.
