Technical values

Location Description Type Basic value Tolerance 1 Tolerance 2
Drive shaft Maximum force for pressing in joints Contact force +20 kN
Drive shaft Positioning bellows Dimension -X- +90 mm +3 mm

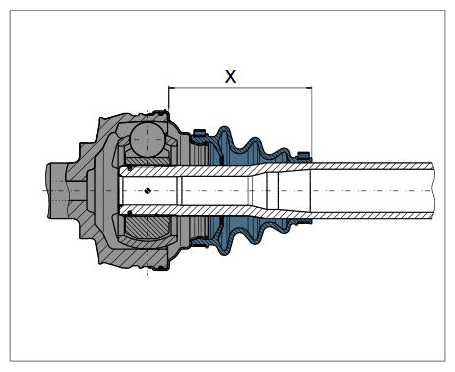

G11985029

Positioning bellows at dimension -X
