Removing lower trailing arm

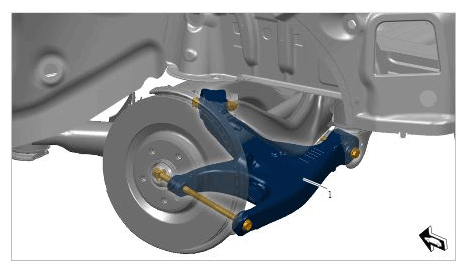

Lower trailing arm

1. Unscrew and remove fastening screw -2-  on the level sensor -1-.

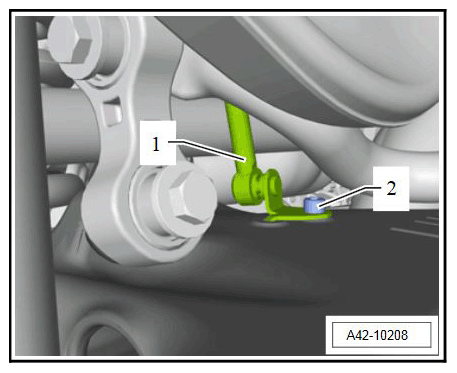

   Mounting for level sensor

2. Unscrew and remove fastening screw -4-  on the connecting link.

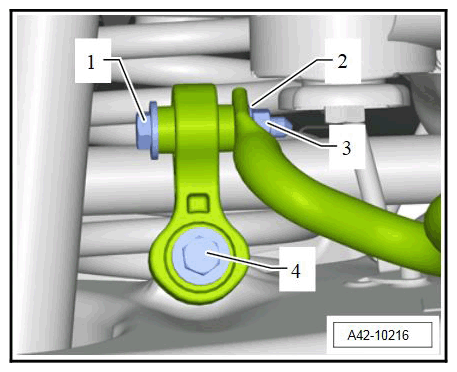

   Mounting for connecting link

3. Loosen lower trailing arm on the wheel bearing housing.

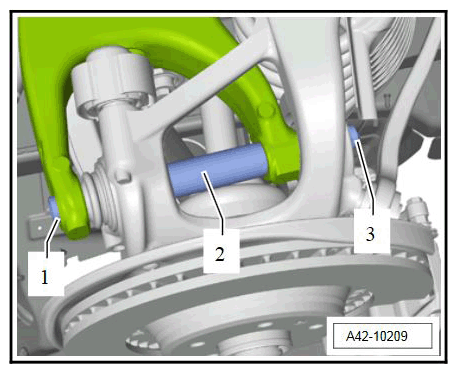

   Mounting for trailing arm on wheel bearing housing

   1. 3.1. Screw off nut -3-.
   2. 3.2. Remove fastening screw -1-  .
   3. 3.3. Remove spacer tube -2-  .
4. Loosen lower trailing arm on the chassis subframe.

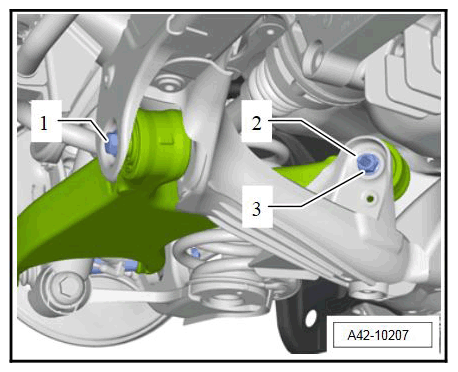

   Mounting for trailing arm on chassis subframe

   1. 4.1. Unscrew and remove fastening screw -1-  .
   2. 4.2. Unscrew nut -3-  and remove fastening screw -2-  .
5. Remove lower trailing arm.
