Removing rear axle housing

  1. Press electric connector -2-  for level sensor on both sides of the vehicle together and disconnect it.

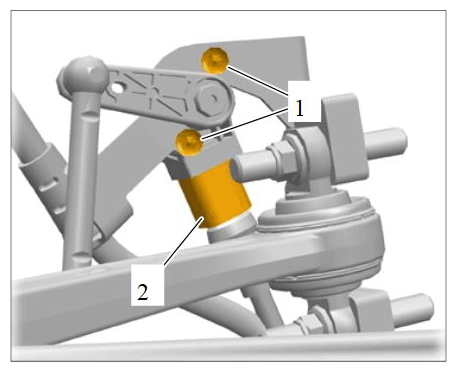

    G11984987

    Mounting for level sensor

  2. Only for vehicles with PASM:

    Release and pull off connector -2-  on both sides of the vehicle.

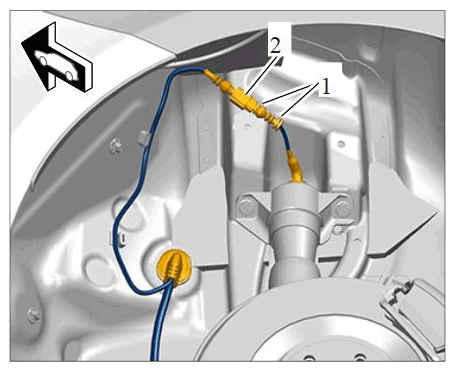

    G11984988

    PASM connector

  3. Release locking lugs -1-  and remove stone guard -2-.

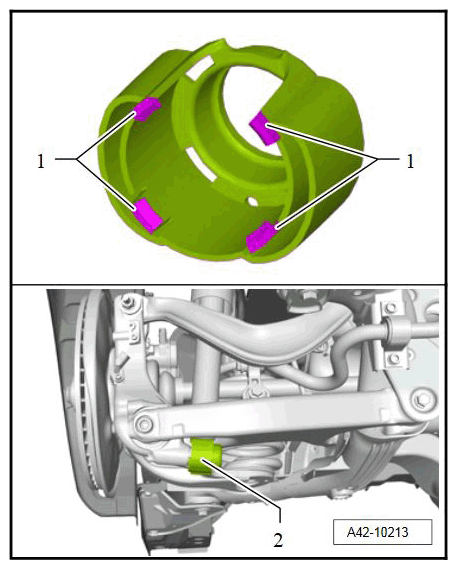

    G11984989

    Removing stone guard

  4. Unscrew fastening screw -2- and remove washer -1-  .

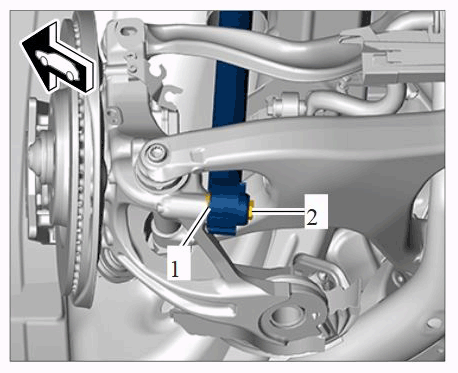

    G11984990

    Lower shock-absorber mount

  5. Remove stone guard -1, 2, 3- if fitted.

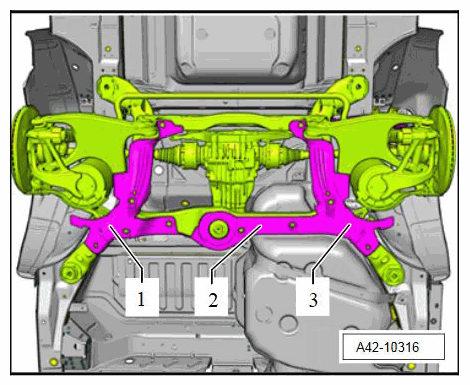

    G11984991

    Stone guard

  1. Transmission jack WE 1082 must be positioned under the rear axle housing -1-  with a suitable piece of wood -2-underneath. Also secure rear axle housing with strapping belts 9454.

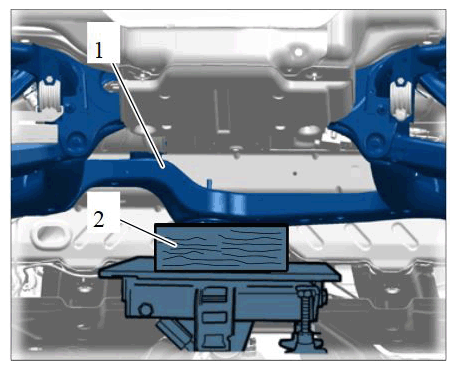

    G11984992

    Supporting rear axle housing

  2. Unscrew front fastening screws -1-  on both sides of the vehicle.

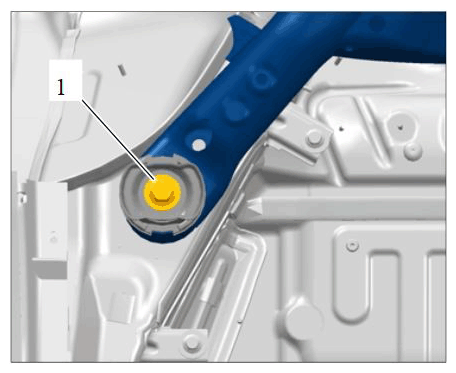

    G11984993

    Mounting for rear axle housing, front

  3. Unscrew rear fastening screws -arrows-.

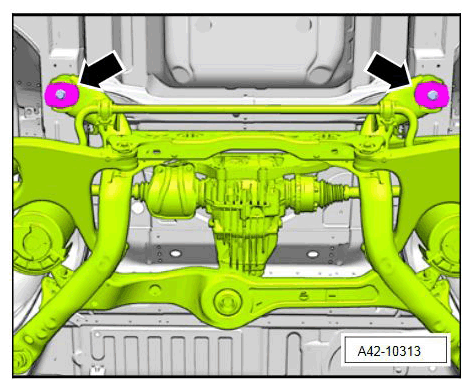

    G11984994

    Mounting for rear axle housing, rear

    Information

    When lowering the rear axle housing, always check that all electric lines are disconnected.

  4. Carefully lower the rear axle housing with accessories. Be careful of the brake callipers and lines while doing so.
