Installing connecting link

  1. Position connecting link -2-  on the removed anti-roll bar -3-  .

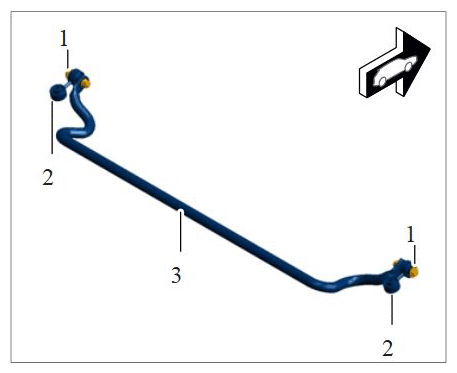

    G11985111

    Connecting link on anti-roll bar

  2. Screw fastening screw -1-  into the nut, but do not tighten it, so that the connecting link -2-  can still move.
