Preliminary work

  1. Remove wheel bearing housing. → 425219 REMOVING AND INSTALLING REAR WHEEL BEARING HOUSING
  2. Unscrew fastening screws -1-  and remove cover plate for brake disc -2-  .
    G11985011

    Mounting for brake cover plate (shown installed as an example)

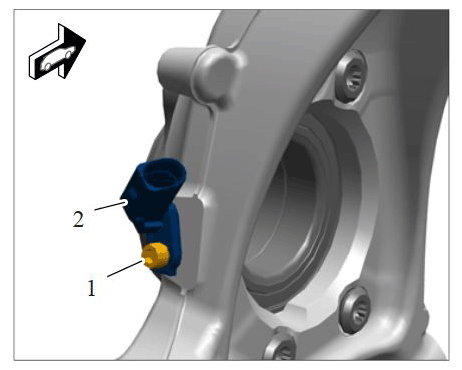

  3. Unscrew fastening screw -1-  and remove speed sensor -2-.
    G11985012

    Mounting for speed sensor
