Installing Rear Wheel Housing

Information

• Before final assembly make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

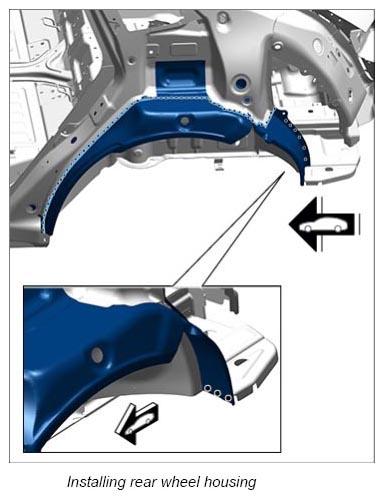

1. Fit rear wheel housing and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS

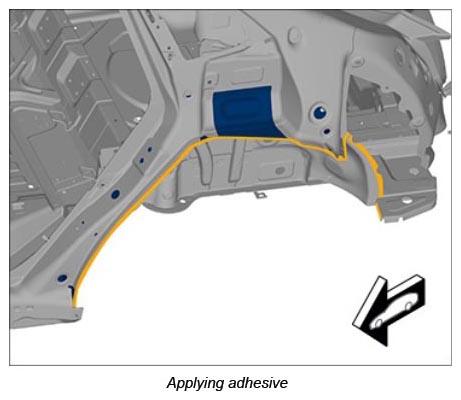

   1. 1.1. Apply adhesive to the areas marked in yellow. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE → Application depth: 3.0 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Resistance spot-weld the rear wheel housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
