Removing Rear Side Section

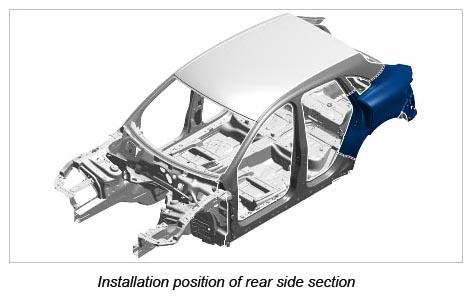

Fig 1: Rear Side Section Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

Mark cuts X  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

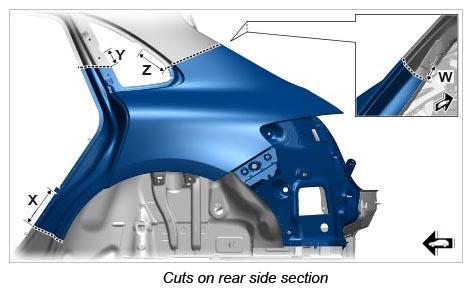

1. Mark and make cuts. → Distance: 86 mm → Distance: 60 mm → Distance: 90 mm → Distance: 50 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

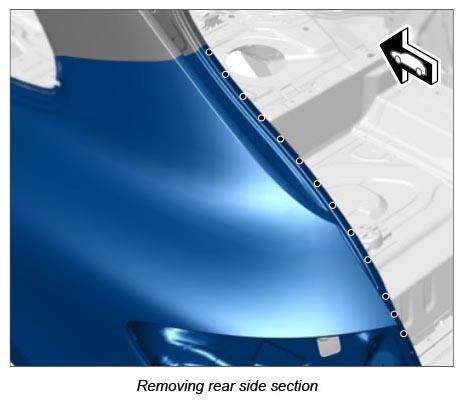

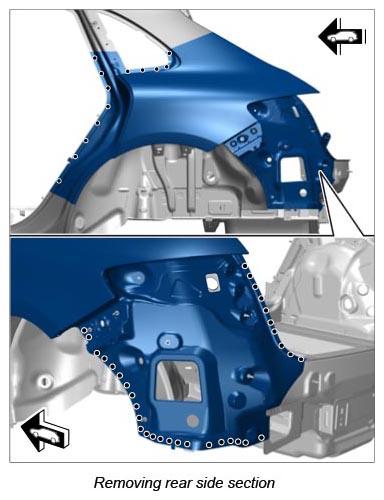

2. Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

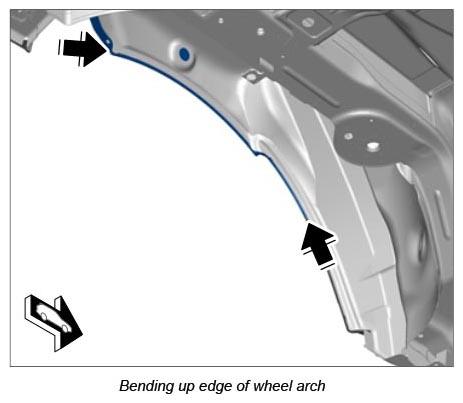

3. Bend up edge of wheel arch in area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

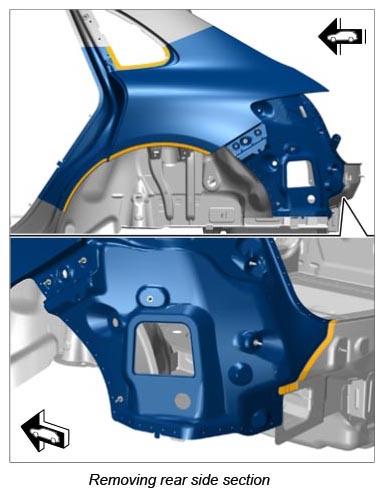

4. Heat the marked bonding surfaces.
   1. 4.1. Remove rear side section.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
