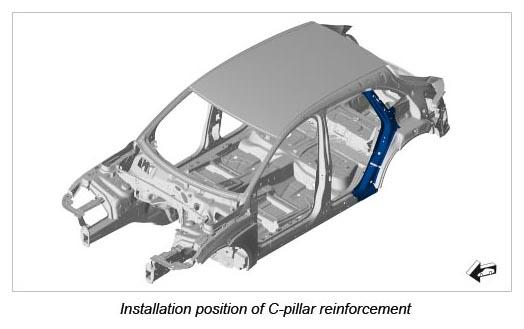

Removing C-Pillar Reinforcement

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

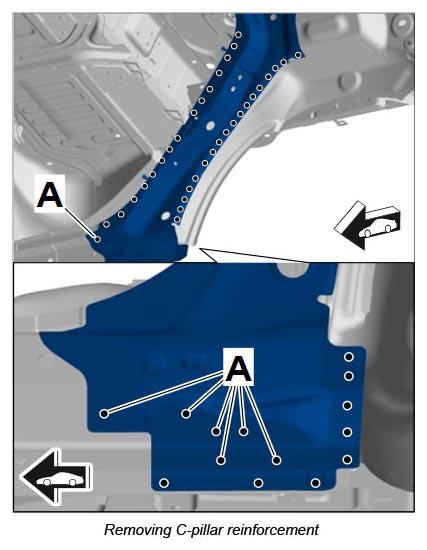

1. 1.1. Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

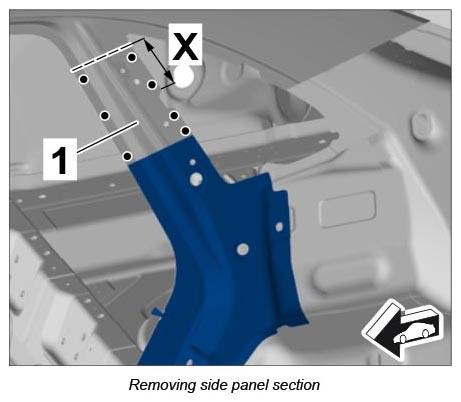

1. 2.1. Mark and make cuts. → Distance: 100 mm

   Information

   Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

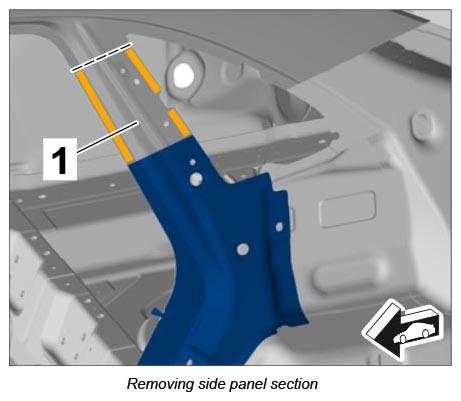

2. 2.2. Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Remove side panel -1 - section.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

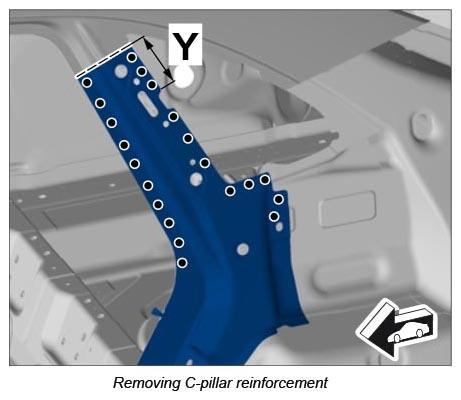

Mark cut Y in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

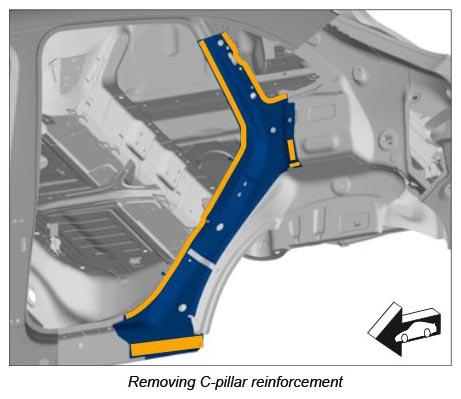

1. 4.1. Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 5.1. Remove C-pillar reinforcement.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
