Installing C-Pillar Reinforcement

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

Information

Adhesive must not be applied to areas to be plug-welded or fully welded using inert gas.

1. Install outer B-pillar and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS
   1. 1.1. Apply foam filler to the body in area -1-  . → WM 5X00IN PROCESSING BODY FOAM FILLER

      Make sure that all openings and gaps between the body and C-pillar reinforcement are closed off with the sealing compound.

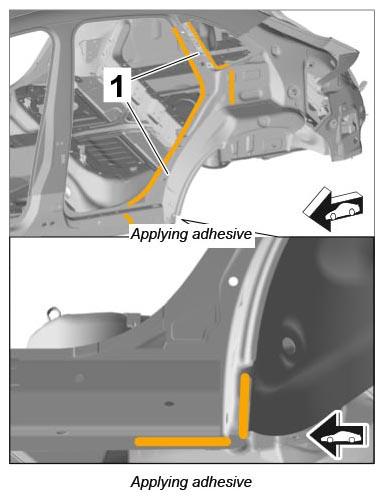

   2. 1.2. Apply adhesive to the areas marked in yellow. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE → Application depth: 3.0 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

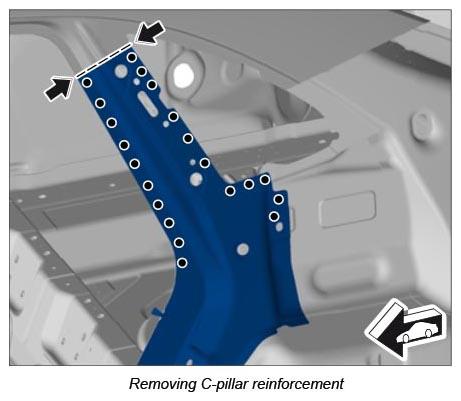

2. Resistance spot-weld the C-pillar reinforcement.

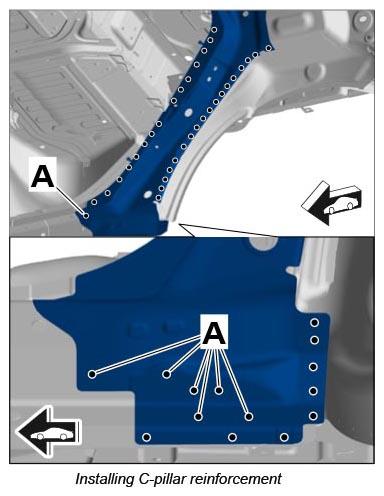

   1. 2.1. Plug-weld area -A-  using inert gas.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Resistance spot-weld the C-pillar reinforcement.
   1. 3.1. Plug-weld area using inert gas.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
