Removing Rear Boot Floor Plate

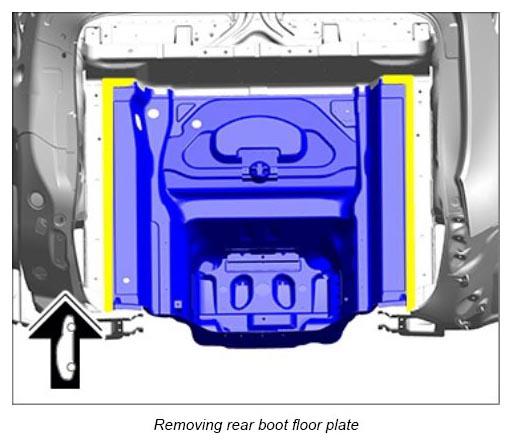

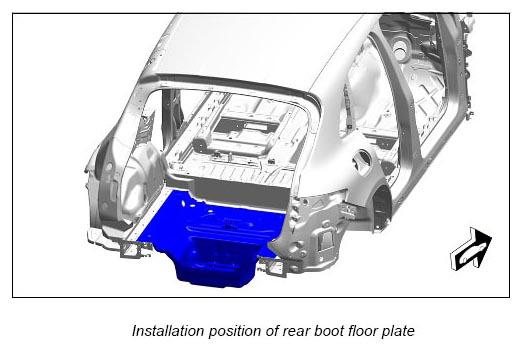

Fig 1: rear boot floor plate Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

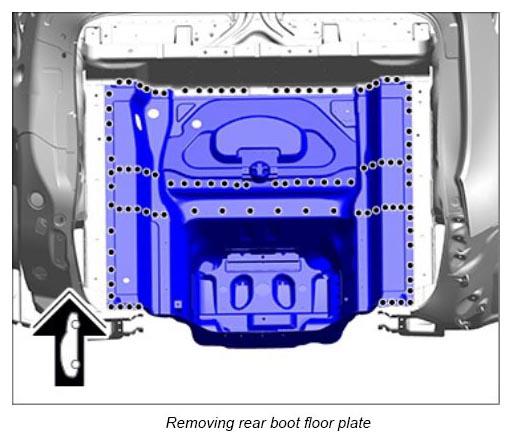

1. Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Heat bonding areas.
   1. 2.1. Remove rear boot floor plate.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
