Removing Inner Rear Closing Panel

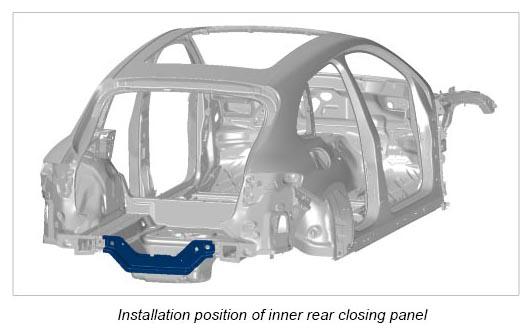

Fig 1: Inner Rear Closing Panel Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

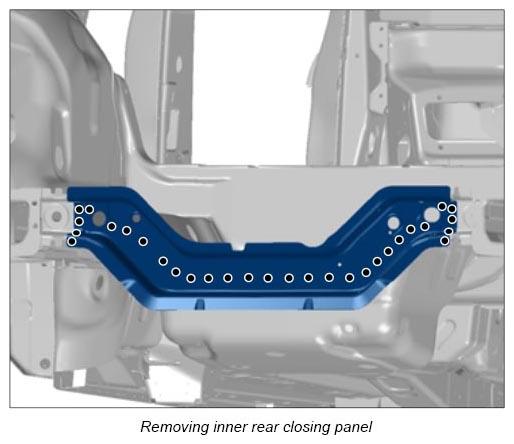

1. Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

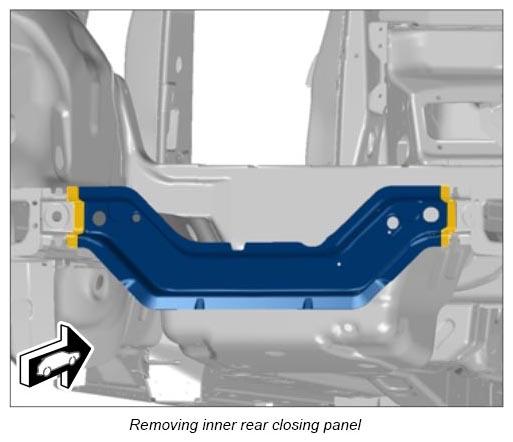

2. Heat the marked bonding surfaces.
   1. 2.1. Remove inner rear closing panel.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
