Installing Inner Rear Closing Panel

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

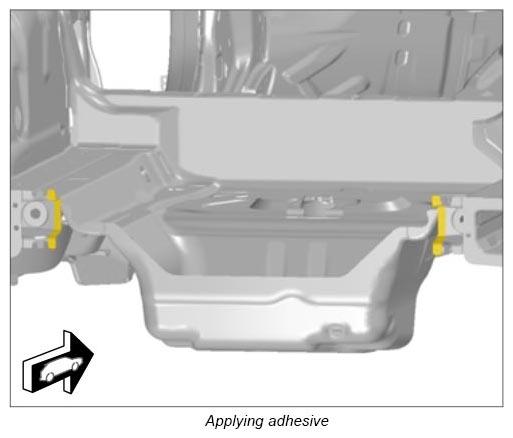

1. Apply adhesive to the marked area. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

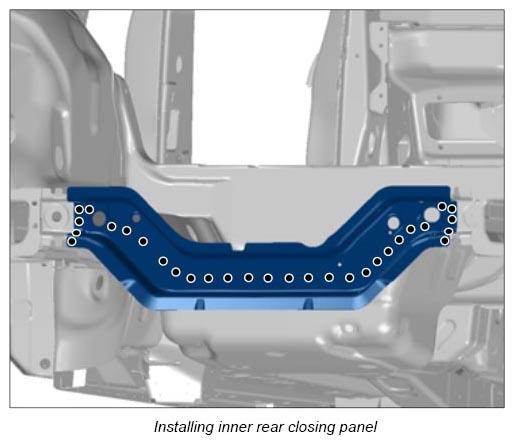

2. Resistance spot-weld the inner rear closing panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
