Installing Roof

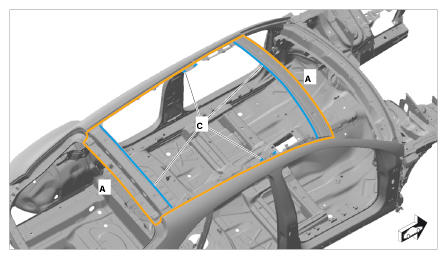

Apply structural adhesive and support adhesive (window adhesive).

Fig 1: Identifying Roof Adhesive Applying Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply structural adhesive to the marked areas -A- .
  Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

  Structural adhesive
2. 1.2. Apply support adhesive (window adhesive) to the marked areas -C- .
  Support adhesive

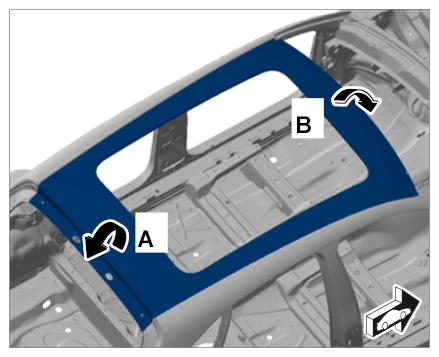

Place roof on rear roof frame with the help of two people -arrow A- and swivel it in towards the front -arrow B- .

Fig 2: Installing Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Have this work carried out by an assistant while at the same time starting with the welding work.

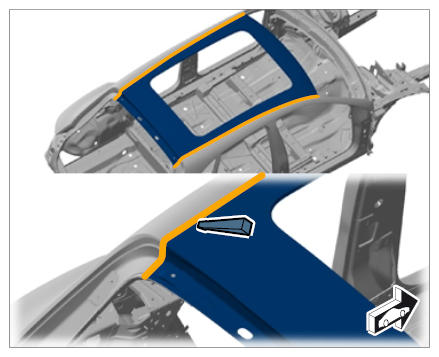

Clean surface of roof in the side panel area.

Fig 3: Cleaning Roof Surface
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Remove most of the excess adhesive material with a plastic spatula or cloth.
2. 3.2. Finish cleaning visible surfaces with a cloth soaked in cleaning solution.

  Fig 4: Cleaning Roof
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

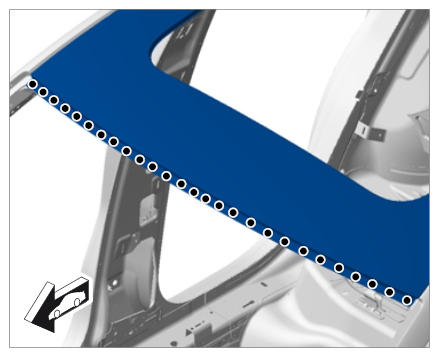

Resistance spot-weld the front of the roof.

Fig 5: Identifying Front Roof Spot-Weld Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

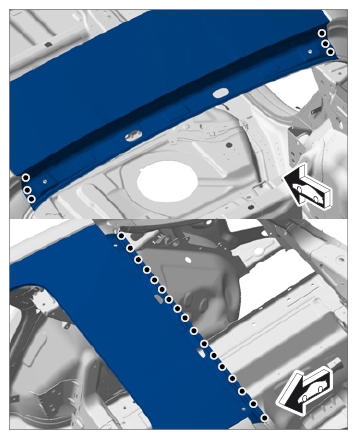

Resistance spot-weld the rear of the roof.

Fig 6: Identifying Rear Roof Spot-Weld Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
