Removing Side Member Reinforcement

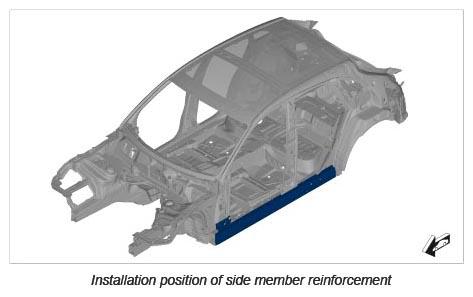

Fig 1: Side Member Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side member reinforcement.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

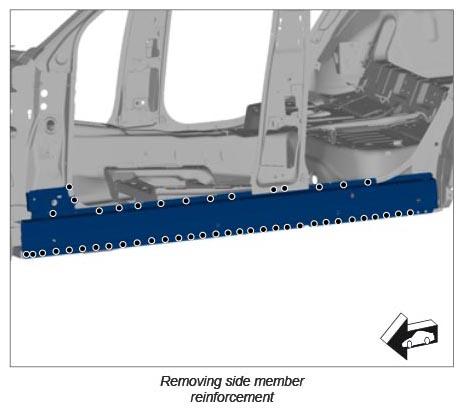

1.1. Drill out spotwelds using spotweld drill;

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat bonding areas.

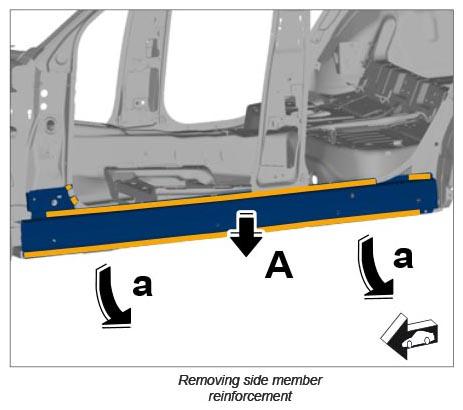

2.1. Pull down side member reinforcement in the inner B-pillar area -arrow A- and remove it -arrows a-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
