Removing A-Pillar Reinforcement

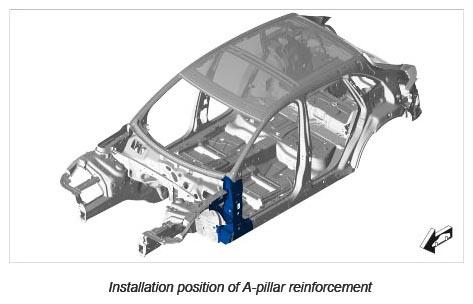

Fig 1: A-Pillar Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

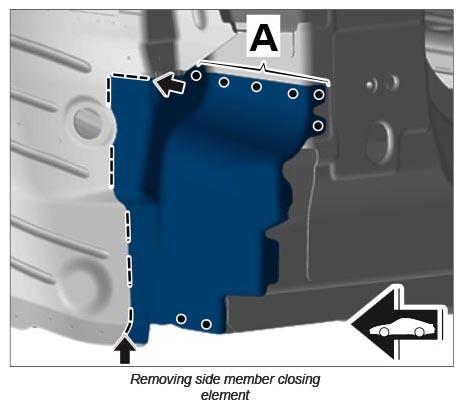

Remove side member closing element.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

1.2. Grind down welded seams.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Mark and make a rough cut.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

2.1. Drill out marked spotwelds using spotweld drill;

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out marked spotwelds using spotweld drill;

3.1. Grind down welded seams.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

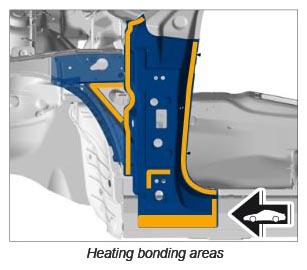

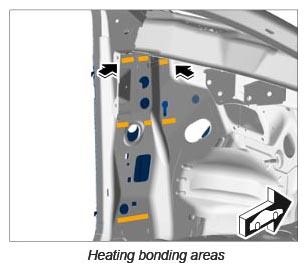

Heat bonding areas from inside.

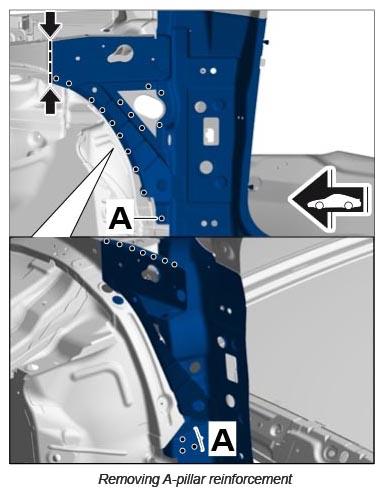

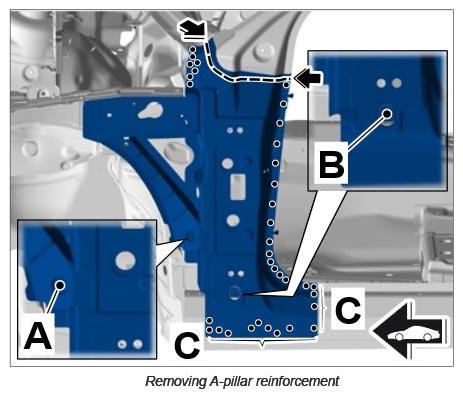

5.1. Remove A-pillar reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

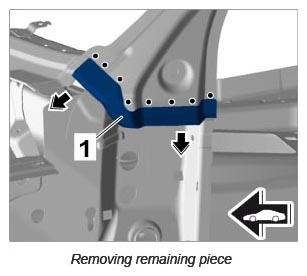

Remove remaining piece.

6.2. Remove remaining piece of A-pillar reinforcement -1- in a downward direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
