Removing A-Pillar

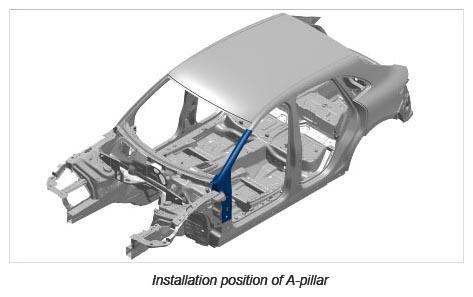

Fig 1: A-pillar Component Location
G12889524Courtesy of PORSCHE CARS NORTH AMERICA, INC.

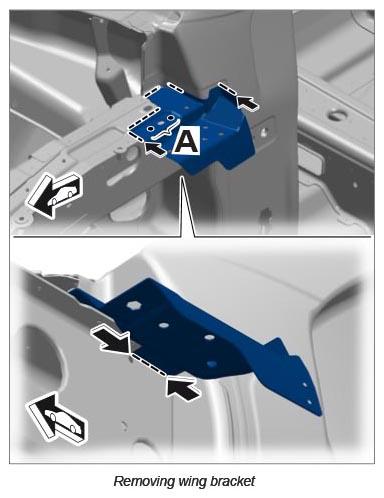

  1. Remove wing bracket.

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

    1. 1.1. Drill out spotwelds -A-  using spotweld drill;  .
    2. 1.2. Grind down welded seams.
      G12889525Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

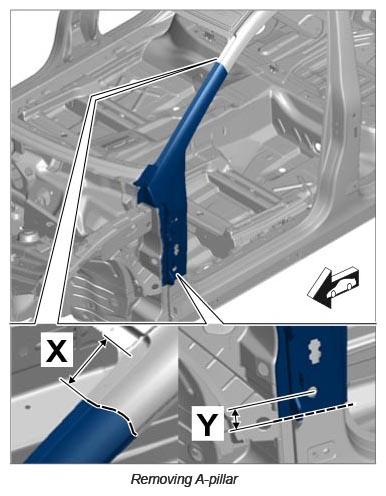

      Mark cuts X & Y  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

      Information

      Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

  2. Mark and make cuts. → Distance: 70 mm → Distance: 65 mm
    G12889526Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

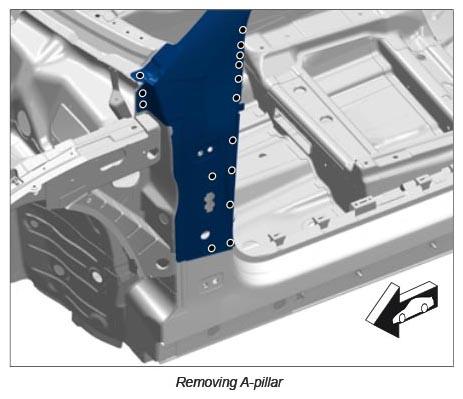

  3. Drill out spotwelds using spotweld drill;
    G12889527Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    G12889528Courtesy of PORSCHE CARS NORTH AMERICA, INC.

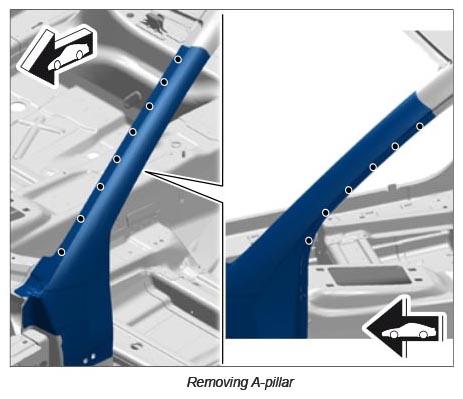

  4. Remove A-pillar.

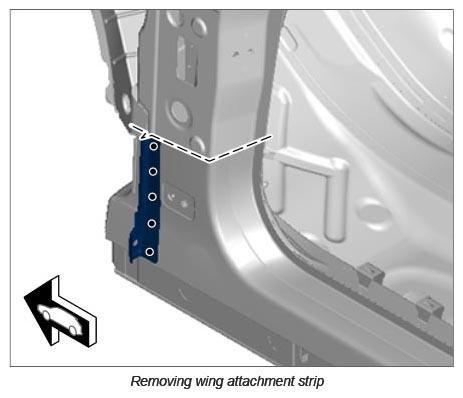

  5. Remove remaining piece of wing attachment strip.

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

    1. 5.1. Drill out spotwelds using spotweld drill;
      G12889529Courtesy of PORSCHE CARS NORTH AMERICA, INC.
