Removing Roof Pillar

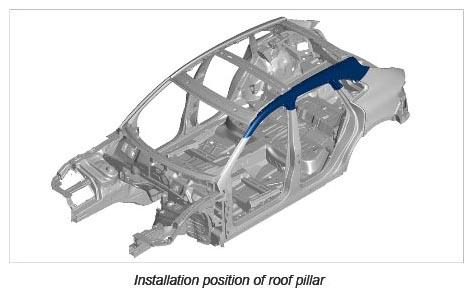

Fig 1: Roof Pillar Component Location (Outer Panel)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

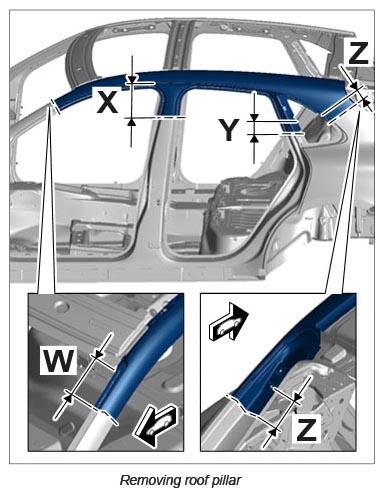

Mark cuts W, X, Y, Z  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

1. Mark and make cuts. → Distance: 70 mm → Distance: 120 mm → Distance: 90 mm → Distance: 50 mm

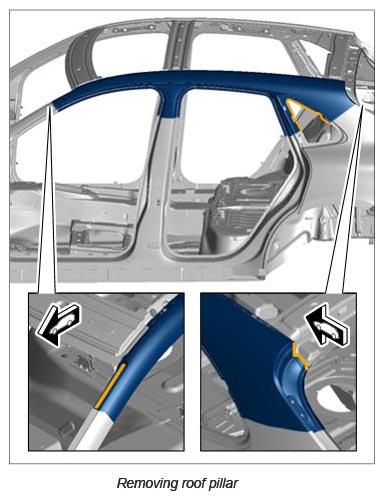

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

2. Drill out spotwelds using spotweld drill;

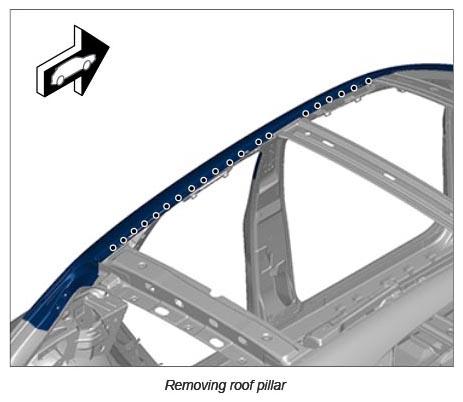

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Heat the marked bonding areas.

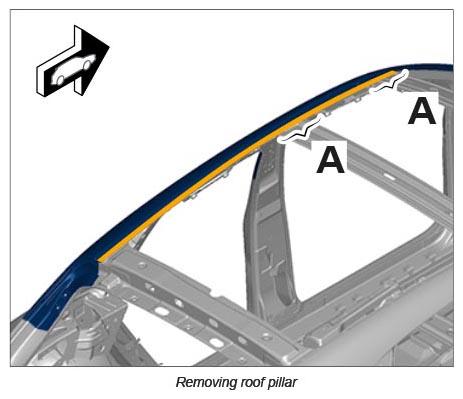

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   The front and centre roof cross members overlap the roof pillar. Make a sufficient gap between the components before removing the roof pillar.

4. Make a sufficient gap with respect to the roof pillar in area -A-  on the front and centre roof cross members.
   1. 4.1. Remove roof pillar.
