Removing Roof

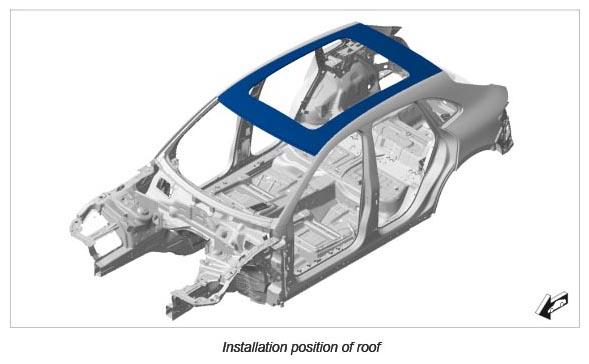

Fig 1: Roof Component Location (With Sliding Roof)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

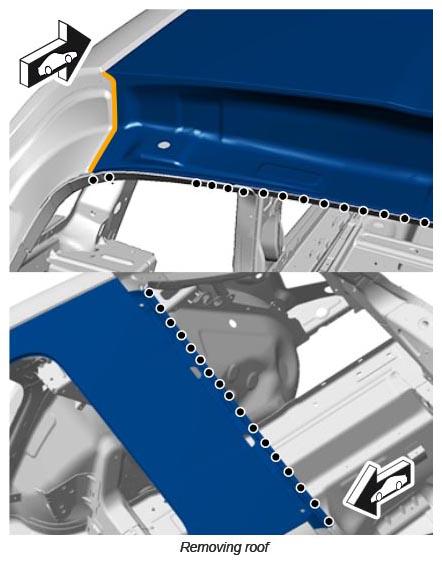

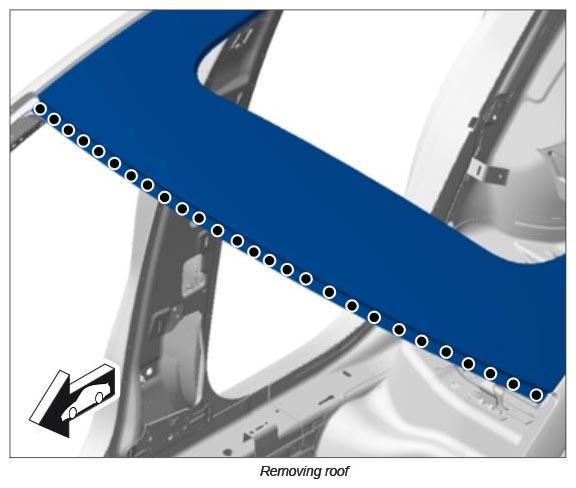

1. Drill out spotwelds using spotweld drill;  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

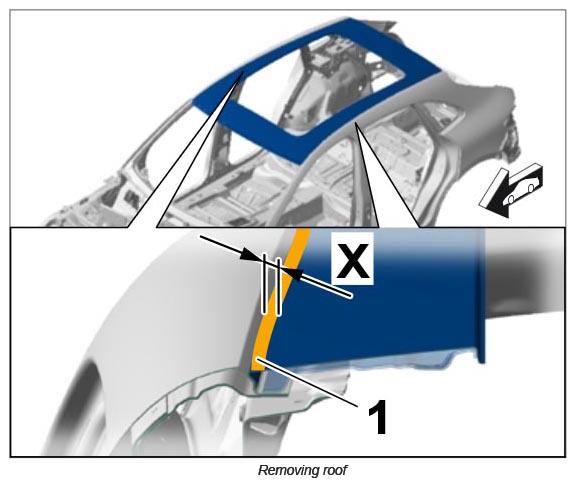

2. Affix adhesive tape -1-  along the edge of the roof on both sides at dimension -X-. → Distance: 15 mm+2 mm

   Adhesive tape serves as cut line.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

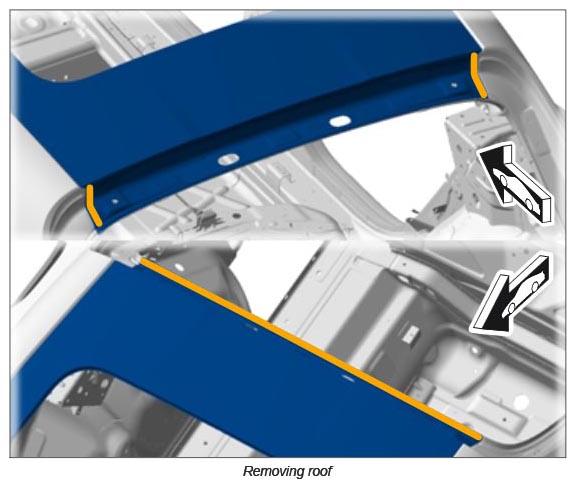

3. Make cut on both sides.

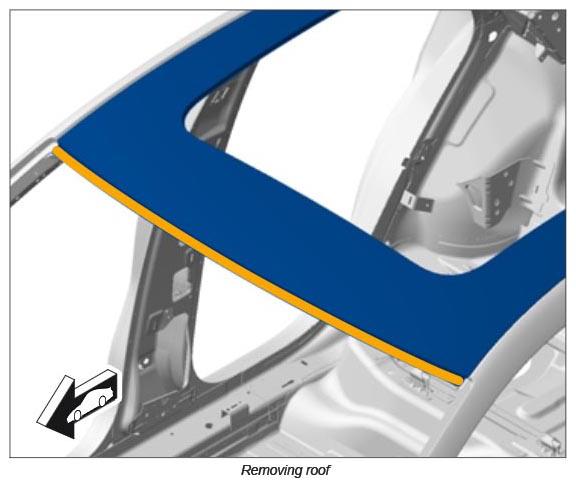

4. Heat connection areas using the hot-air gun.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

5. Remove roof (with the help of two people).

   Information

   • During separation make sure that the components beneath are not damaged  .

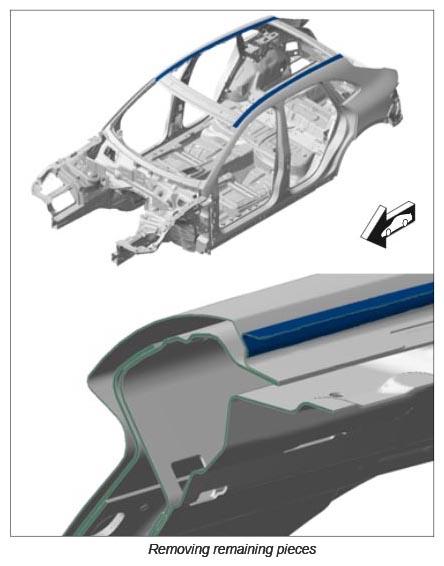

6. Remove remaining pieces of roof.
   1. 6.1. Cut off laser soldered joints on side panels.
   2. 6.2. Remove remaining pieces.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
