Removing Cowl Panel Cover

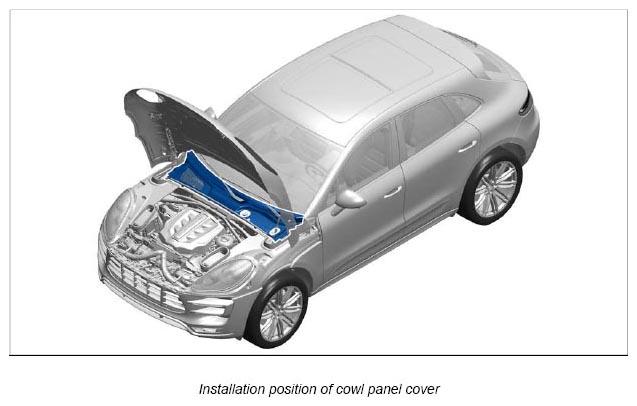

Fig 1: Cowl Panel Cover Component Location
G12889280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

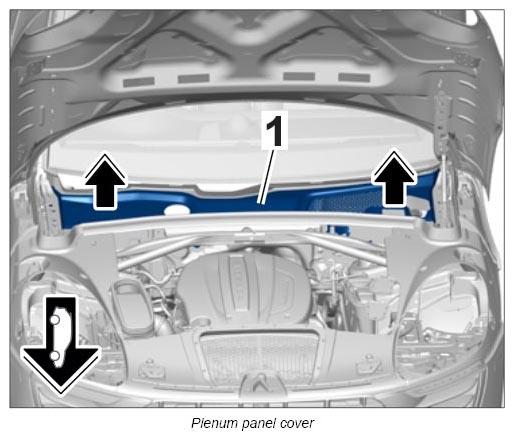

  1. Unclip cover -1-  for plenum panel by pulling it upwards and remove it by pulling it forward.
    G12889281Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove cowl panel cover.
    1. 2.1. Remove wiper arm. → 922519 REMOVING AND INSTALLING WIPER ARM

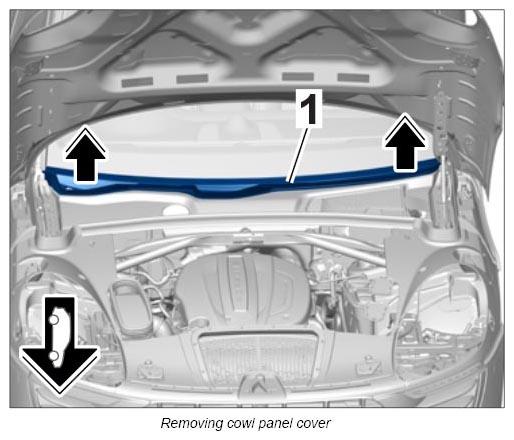

    2. 2.2. Unclip cover -1 -  from the windscreen guide and remove it by pulling it upwards.
      G12889282Courtesy of PORSCHE CARS NORTH AMERICA, INC.
