Installing Cowl Panel Cover

  1. Installation is performed in reverse order to removal.

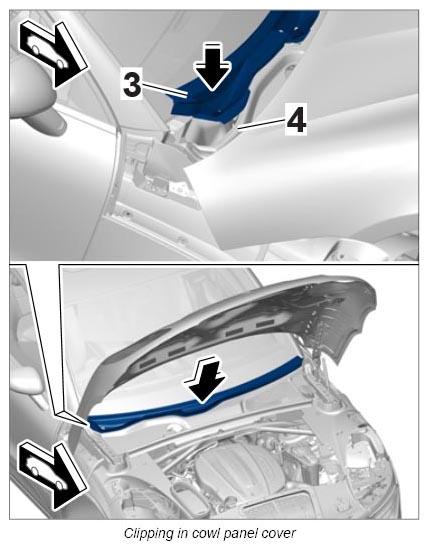

  2. Engage locking lug -3-  on the cowl panel cover in the retaining strip on the windscreen -4-  .
    G12889283Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip in cover for plenum panel and check that the rubber profile is seated correctly.
