Replacing Seal For Roof Assembly (Body Side): Notes

Replacing seal on body side

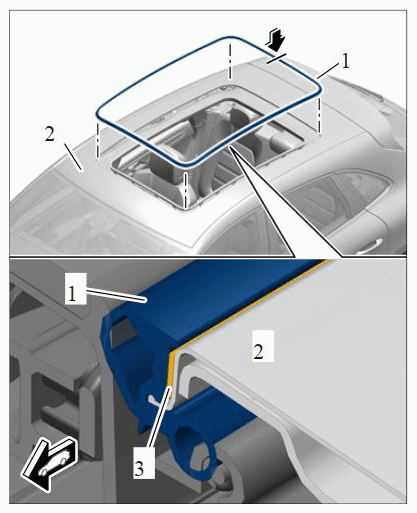

1. Pull outer seal -1-  off the bonding surface -3-  on the roof -2-  .
2. Remove any adhesive residue from the roof using an erasing disc film eraser Nr.174 Pos.1  .
   NOTE:

   • Immediately before sticking on, wash off the areas on which you intend to stick the seal using isopropanol to ensure that all traces of silicone, grease and oil are completely removed  .
3. Clean bonding surface with isopropanol.
4. Centre the new outer seal -1-  with the gap -arrow-  facing the middle of the rear roof cut-out.
5. Pull off protective film on the adhesive tape -3-  and press the seal evenly onto the roof -2-  .
6. Press the outer seal firmly onto the roof by pressing it on evenly twice all the way around using a press-on roller.
