Removing Roof Assembly Panels (Panorama Roof)

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

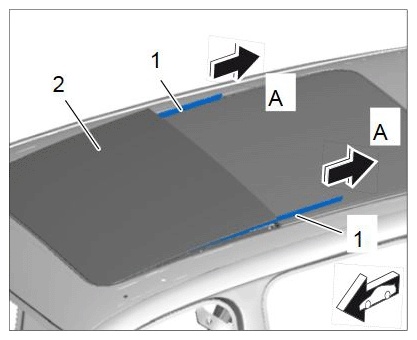

1. Lift up the glass panel -2-  until the side panels -1-  are accessible.

   Removing panels

2. Push panels -1-  off the passenger compartment to the rear and remove them -A-  .

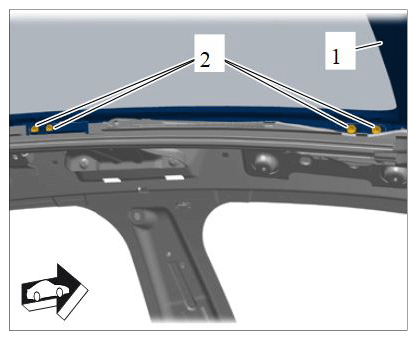

3. Unscrew fastening screws -2-  on the glass panel -1-  .

   Removing front panel

4. Lift the glass panel up and remove it.
