Removing Rear Sliding-Roof Panel
- Open the sun blind fully.

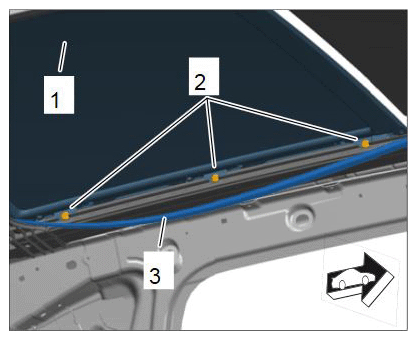

- Pull acoustic seal -3-
off the assembly frame until the fastening screws -2-
are accessible.
Removing rear lid
- Unscrew fastening screws -2- on the glass panel -1- .
- Raise the front panel -4- .
- Slide the rear glass panel -1-
slightly under the front glass panel -4-
(-A-
).

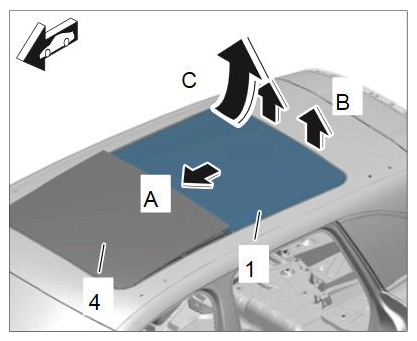

Removing rear panel
- Only lift the rear part of the rear glass panel -1- out of the roof cut-out -B- .
- Guide out the rear glass panel -1- by moving it up at an angle -C- over the roof and under the front glass panel -4- .
