Removing Air Deflector

NOTE:
  • Some of the repair illustrations show only one side of the vehicle or describe a similar component  .
  • Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

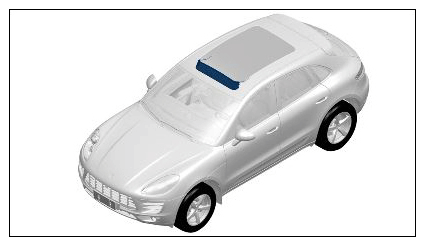

    G11984415

    Installation position of air deflector

  1. Open the front glass panel fully.
  2. Disengage tension spring -1-  for air deflector -2-  at the left and right.

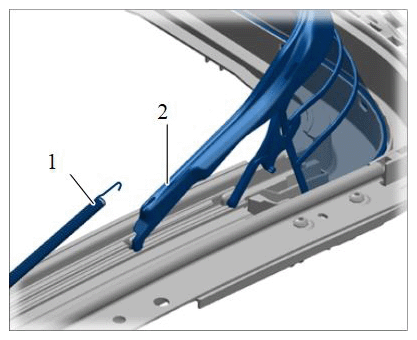

    G11984416

    Tension spring

  3. Carefully unclip net piping -1-  from the clamping strip, starting at the sides.

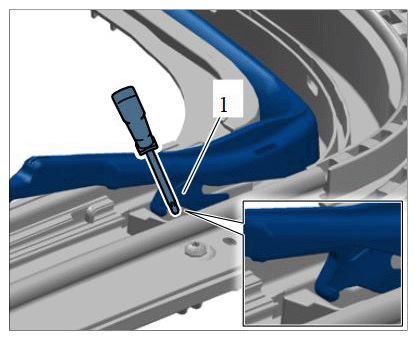

    G11984417

    Disengaging net piping

  4. Pull expansion rivet -1-  out of the guide using a pointed-nose pliers.

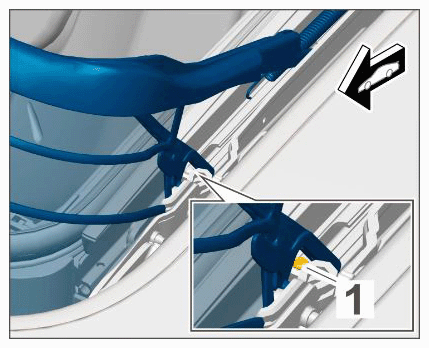

    G11984418

    Pulling out expansion rivet

  5. Pull knock-out lever -1-  for air deflector forward out of the guide rail.

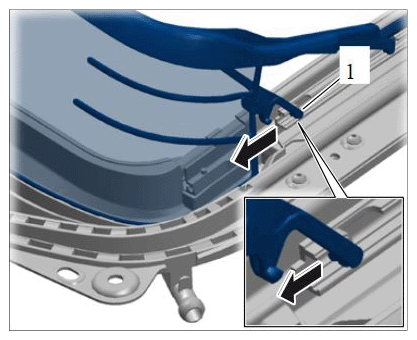

    G11984419

    Removing air deflector

  6. Remove air deflector.
