Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

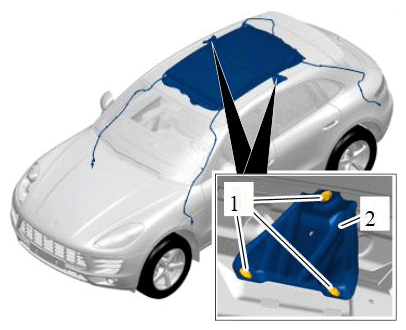

| Fastening screw for bracket | Tightening torque | 8 Nm (6 ftlb.) | |||
|
Removing bracket |
|||||

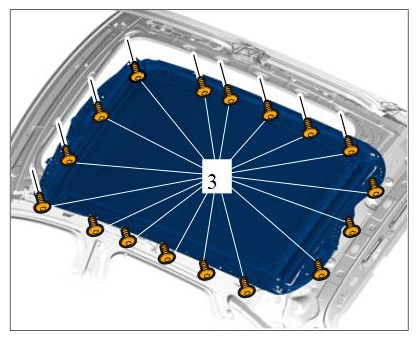

| Fastening screws for roof assembly | Observe specified tightening sequence | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Installing roof assembly |
|||||

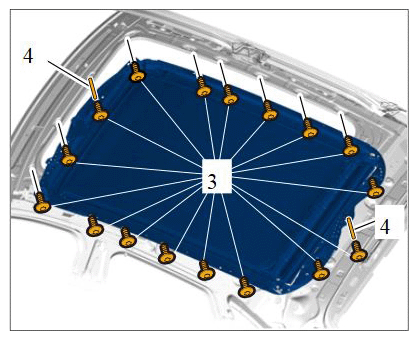

| Securing roof assembly to body | Diameter | 8 mm (6 ftlb.) | |||
|
Positioning roof assembly |
|||||
