Removing Load-Through Provision

  1. Fold left and right backrest and load-through provision forward.
  2. Unscrew and remove fastening screws -1-  for the supporting bow -2-  .

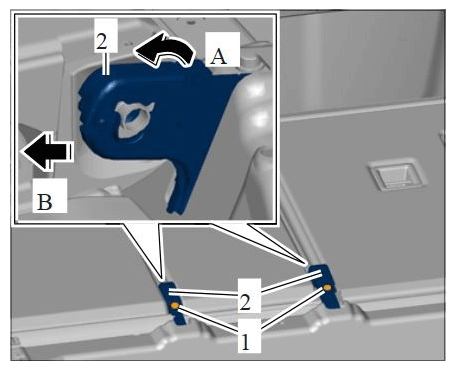

    G11982153

    Loosening supporting bow

  3. Remove supporting bow -2-  by moving it upwards -arrow A-  and unhooking it and pulling it forward out of the cross bolt -arrow B-  .
  4. Lift load-through provision -1-  out of the mount at the left and right -arrows-  .

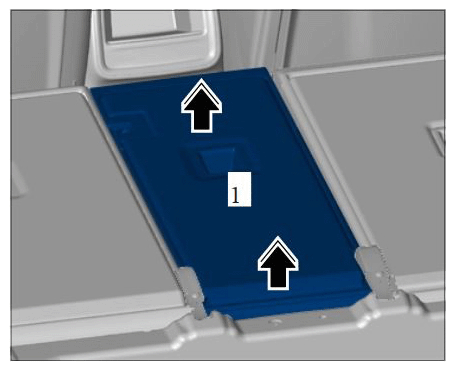

G11982154

Removing load-through provision
