Installing Load-Through Provision

1. Fold left and right backrest forward.
2. Position load-through provision -1-  on the mount on the left and right from above -arrows-  .

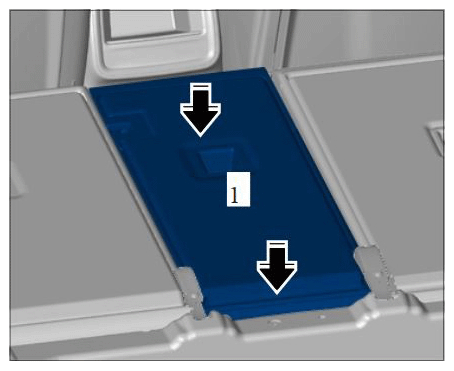

   Installing load-through provision

3. Position supporting bow -1-  over the mounts -arrows-  and tighten securely Tightening torque 12 Nm (9 ftlb.)  .

Information

Always replace the fastening screws on the seat assembly after customer service and reworking. Micro-self-locking or self-tapping screws must not be modified, greased or loosened and then screwed in again.

Screwing on supporting bow
