Removing Armrest With Cover (Rear)

  1. Unclip side trim covers -1-  using a plastic wedge -2-  and move them to the rear -arrows-  .
    G11982147

    Removing side trim cover

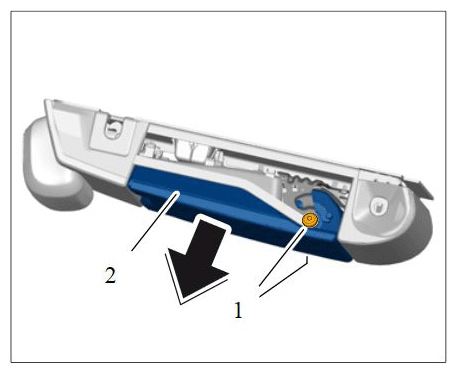

  2. Loosen fastening screws -1-  for the armrest -2-  .
    G11982148

    Removing armrest

  3. Remove armrest with cover -arrow-  .
