Installing Armrest With Cover

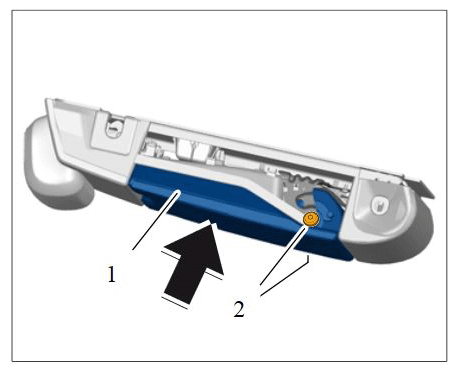

1. Position armrest -1-  (-arrow-  ) so that the fastening screws -2-  can be fitted.

   Installing armrest with cover

2. Tighten fastening screws -2-  for the armrest Tightening torque 4.5 Nm (3 ftlb.)  .

   Information

   • Replace fastening screws with new fastening screws before installation  .
   • Self-locking nuts and screws must always be replaced before installation  .

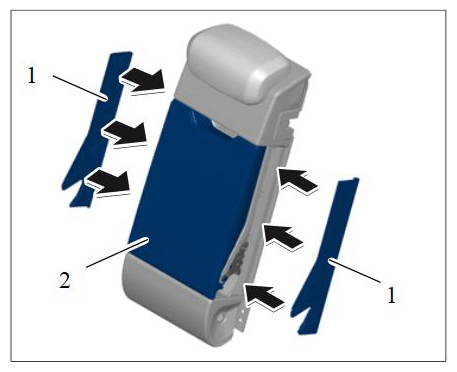

3. Clip side trim covers -1-  into the load-through provision -2-  (-arrows-  ).

Clipping in side trim covers
