Installing Cover For Rear Backrest

Information

Detach cover from the padding and secure it, see → 745355 REPLACING COVER FOR REAR BACKREST

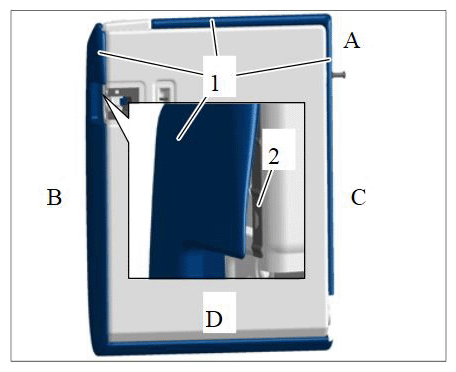

1. Secure cover piping -1-  . To do this, start from the top and moving to the underside of the backrest (-A, B, C, D-  ), press the cover piping -1-  into the retaining strips -2-  .

   Installing cover piping on rear backrest

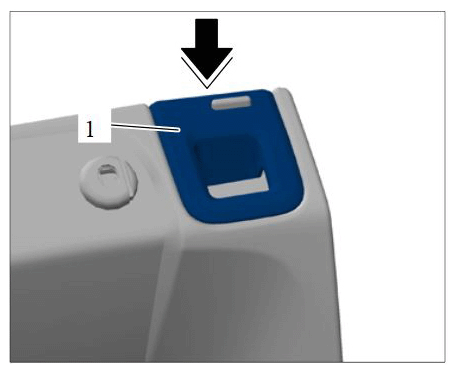

2. Fit cover on locking mechanism for backrest -1-  from above and clip it in -arrow-  .

   Installing cover on locking mechanism for backrest

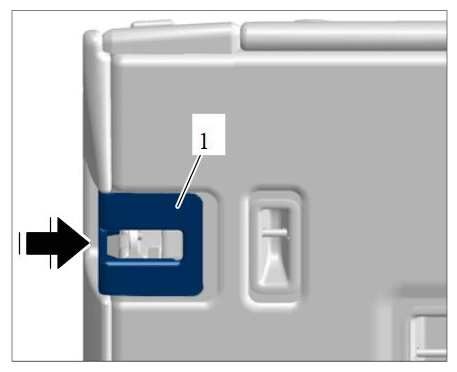

3. Fit cover on lock for backrest -1-  at the sides and press it on securely -arrow-  .

   Installing cover for lock

4. Only for left rear backrest:  Remove cover for belt.

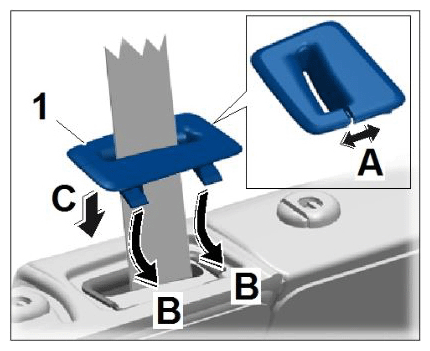

   1. 4.1. Carefully pull cover for belt -1-  apart at the connection point -arrow A-  and guide in the belt.

      Installing cover for belt

   2. 4.2. Fit cover for belt -1-  at the front fixing clip -arrow B-  and press it on securely at the rear -arrow C-  .
