Securing Padding For Rear Seat Surface

1. Position seat cover on the padding.

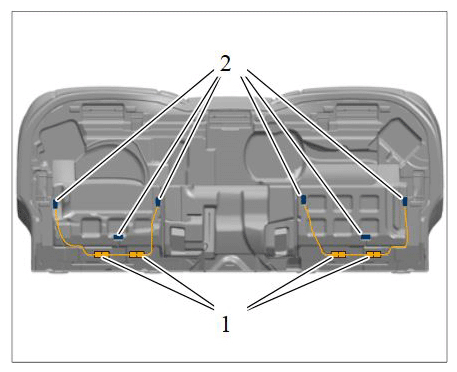

2. For vehicles with heated seats:  Pull electric plug connection for seat heating -1-  through the openings in the padding -2-  , connect them and secure lines in the padding.

   Connecting electric plug connection

3. Secure cushion clips.

Secure metal struts in the cover -A-  using cushion clip pliers Nr.130  in the sequence shown -1 - 47-  and -1 - 51-  to the fastening points on the padding -B-  .

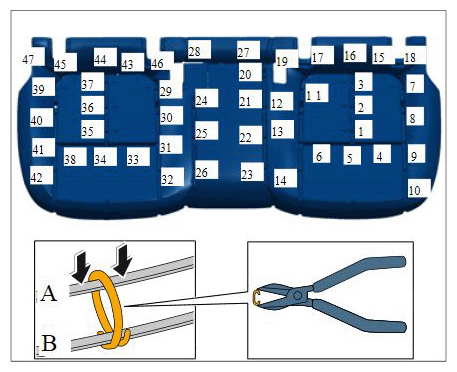

Installing rear seat cover (basic/Comfort)

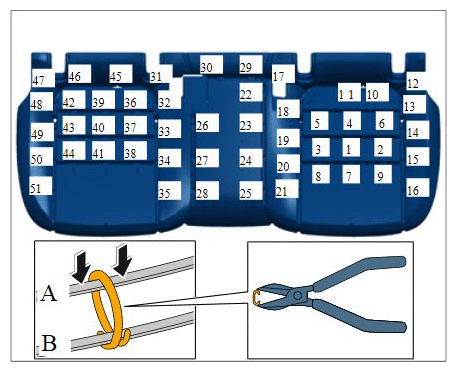

Installing rear seat cover (Sport)
