Loosening Padding For Rear Seat Surface

  1. Cut metal cushion clips (-markings-  ) using side cutters.

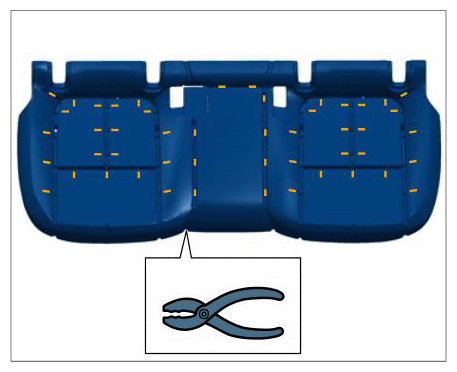

    G11982104

    Removing rear seat cover (basic/Comfort)

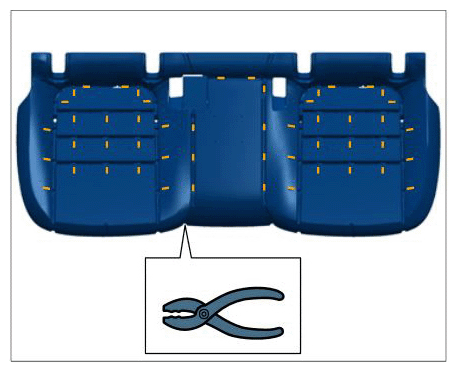

    G11982105

    Removing rear seat cover (Sport)

  2. Remove remaining parts of cushion clips and detach padding from the cover.
  3. For vehicles with heated seats:  Disconnect electric plug connections, disconnect electric lines from the cushion carrier and remove with the cover.
