Installing Padding For Rear Seat Surface

Information

Detach padding from the cover and secure it, see → 744955 REPLACING PADDING FOR REAR SEAT SURFACE

  1. Clip in cover tensioner -1-  (-arrows-  ).

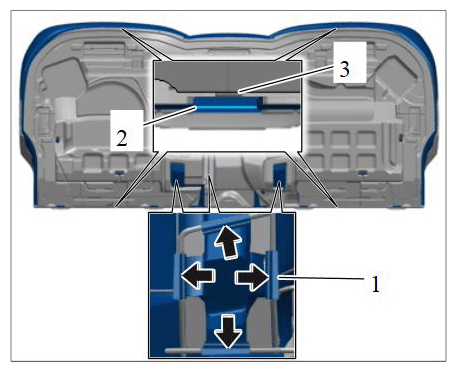

    G11982101

    Clipping in cover tensioner

  2. Clip cover piping -2-  into the retaining strip -3-  all the way around.
