Securing Cover For Front Backrest

  1. Place cover on the padding and align contour of the padding.
  2. Use cushion clip pliers Nr.130  and new cushion clips to secure the cover on the padding in the specified sequence.

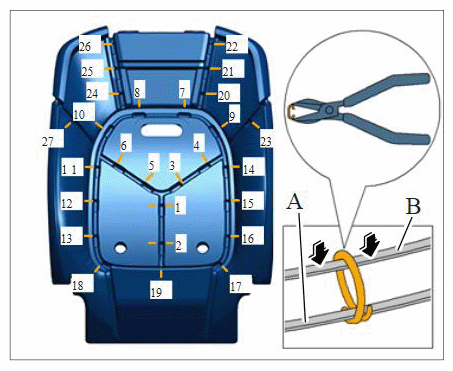

G11982094

Securing cover on padding for front backrest (basic/Comfort)

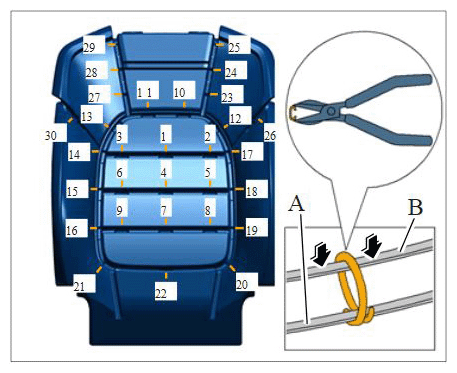

G11982095

Securing cover on padding for front backrest (Sport)
