Removing Cover For Front Backrest

Information

Detach padding from the cover and secure it, see → 741955 REPLACING COVER FOR FRONT BACKREST

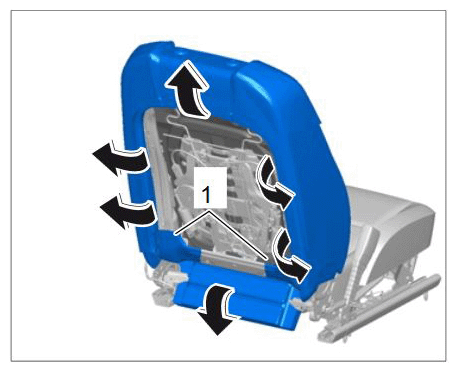

1. Disengage cover from the cut-out for the backrest cover all the way around -arrows-  .

   Disengaging cover from cut-out for backrest cover

2. Pull out fixing clips -1-  .

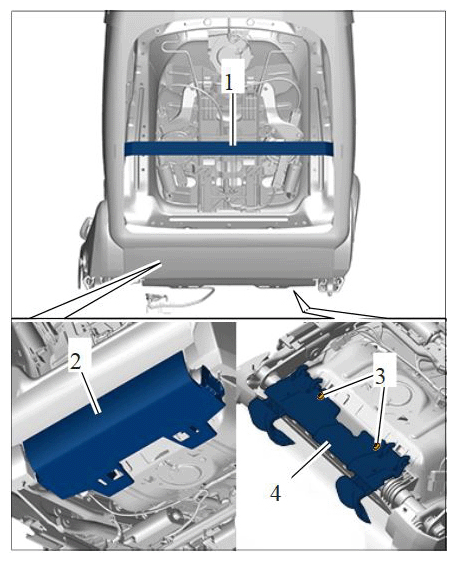

3. Disengage restraining strap -1-  for the cover at the left and right.

   Loosening restraining strap

4. Unclip rear seat cover -2-  by pulling it downwards.
5. Loosen fastening screws -3-  for ISOFIX clips -4-  .

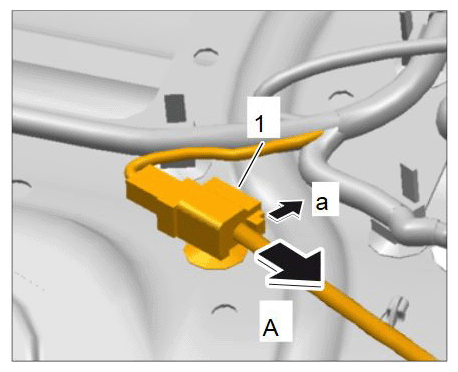

6. Release and disconnect electric plug connection for seat heating at the underside of the seat.

   Disconnecting connector for seat heating

7. Carefully place cover over the ends of the headrest guides.

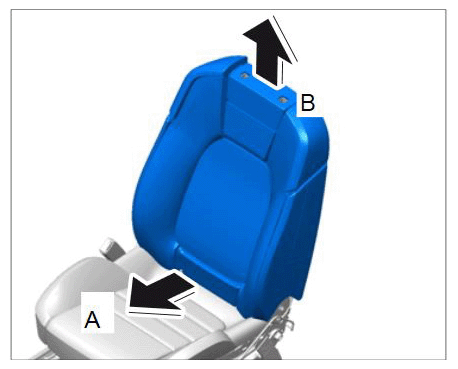

8. Pull padding with cover forward between the seat surface and backrest -arrow A-  .

   Removing padding

9. Remove padding with cover by pulling it upwards -arrow B-  .
