Installing Suction Fan For Backrest Surface

Information

Fixing clips on the seat frame will be damaged irreparably during removal. Replace expansion rivets and fixing clips during installation and do not re-use them.

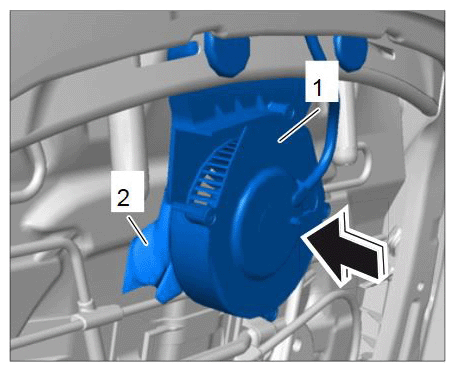

1. Position suction fan -1-  on the backrest frame and insert it into the rubber flange (air guide) -2-  (-arrow-  ).

   Positioning suction fan

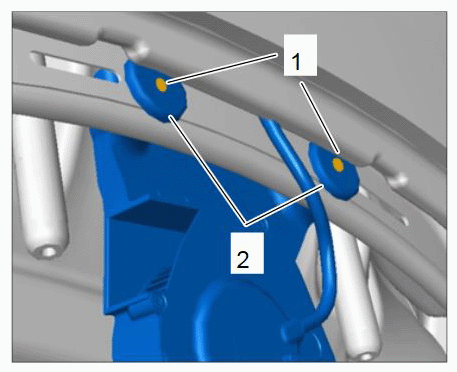

2. Secure the suction fan on the backrest frame with two plastic expansion rivets -2-  .

   Expansion rivets

   1. 2.1. Fit expansion rivets -2-  .
   2. 2.2. Fit plastic pins -1-  on the expansion rivets -2-  and press them through using a mandrel.

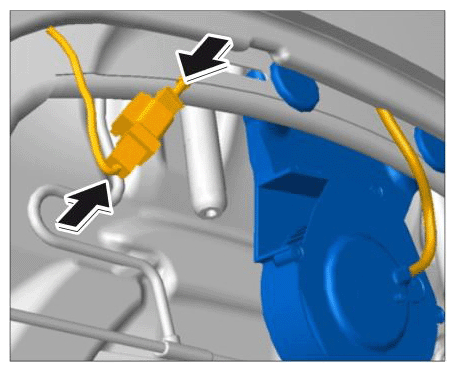

3. Plug in electric plug connection for suction fan -arrows-  .

   Plugging in connector for suction fan

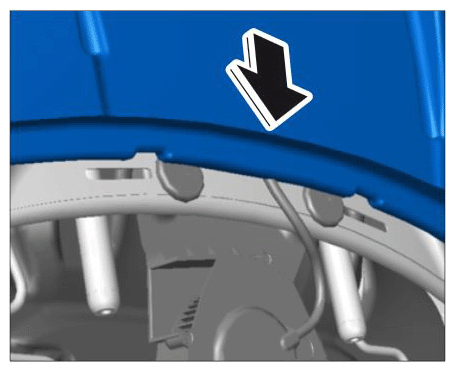

4. Attach cover for rear backrest at the top -arrow-  .

Attaching cover
