Securing Cover For Front Seat

  1. Place cover on the padding for the front seat and align contour with the padding.
  2. Secure the cover to the padding using cushion clip pliers Nr.130  and new cushion clips.
G11982053

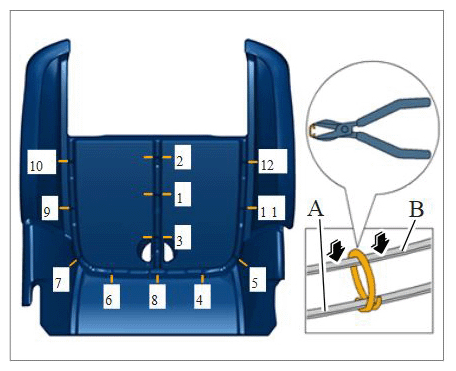

Securing cover for front seat to padding (basic/Comfort)

G11982054

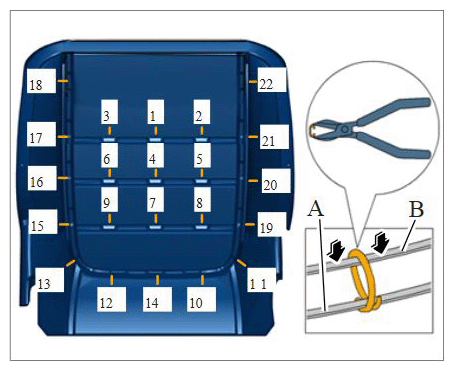

Securing cover for front seat to padding (Sport)
