Securing Padding For Front Seat

  1. Place cover on the padding for the front seat and align contour with the padding.
  2. Use cushion clip pliers Nr.130  and new cushion clips to secure the cover on the padding in the specified sequence.
    G11982026

    Securing cover for front seat to padding (basic/Comfort)

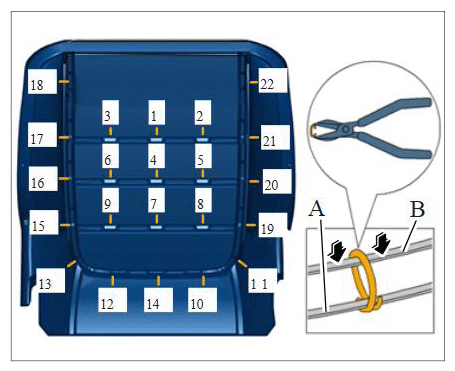

    G11982027

    Securing cover for front seat to padding (Sport)

  3. IMPORTANT: The mat for the occupant classification system must not be damaged or removed from the padding.
