Removing Suction Fan For Seat Surface

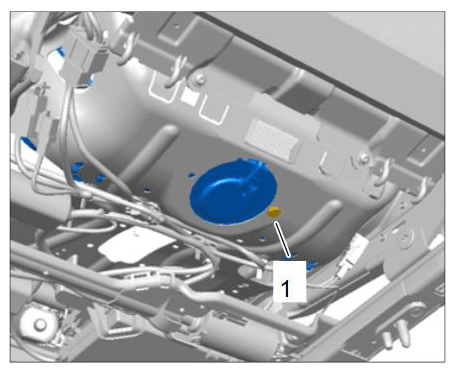

  1. Remove expansion rivet -1-  .
    G11982016

    Expansion rivet

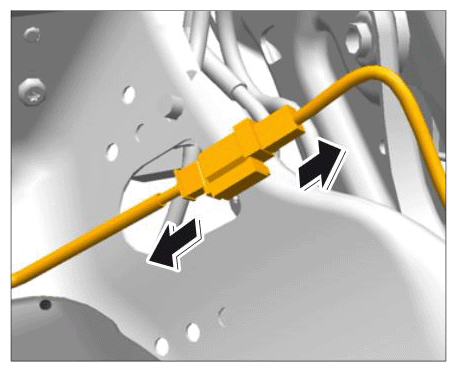

  2. Disconnect electric plug connection -arrows-  for suction fan.
    G11982017

    Disconnecting connector for suction fan

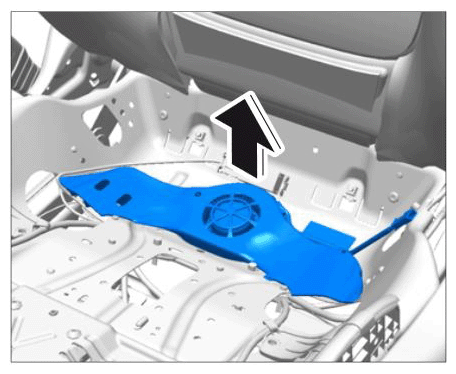

  3. Unclip the suction fan together with the bracket and remove it by pulling it upwards.
G11982018

Removing suction fan
