Installing Suction Fan For Seat Surface

Information

Fixing clips on the seat frame will be damaged irreparably during removal. Replace expansion rivets and fixing clips during installation and do not re-use them.

1. Position suction fan together with the bracket on the seat surface.

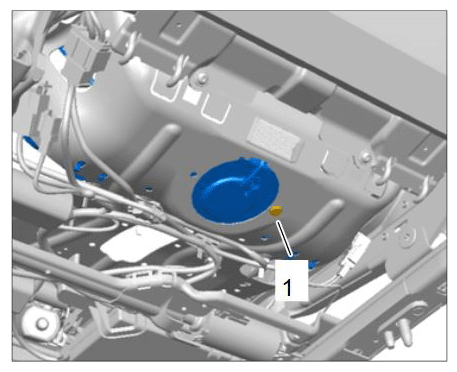

2. Clip in the bracket and secure the suction fan on the seat surface with an expansion rivet -1-  .

   Expansion rivet

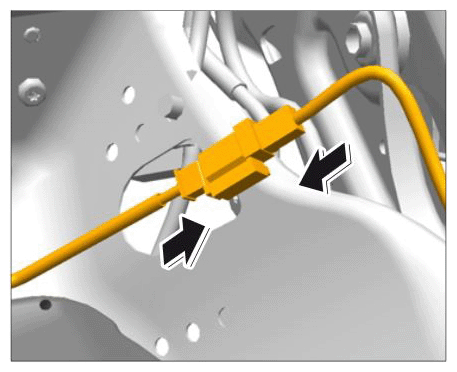

3. Plug in electric plug connection -arrows-  for suction fan.

Plugging in connector for suction fan
