Installing Front Seat-Surface Extension

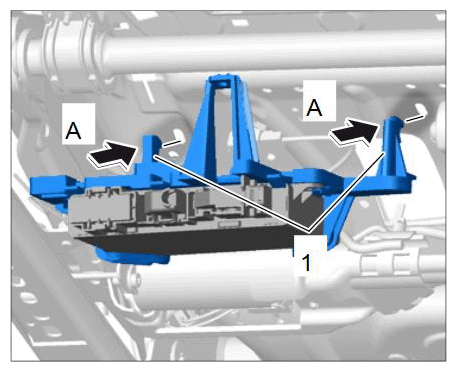

  1. Insert bracket -1-  for control unit for memory seat adjustment into the seat frame -arrows A-  .
    G11982013

    Inserting bracket for control unit for memory seat adjustment

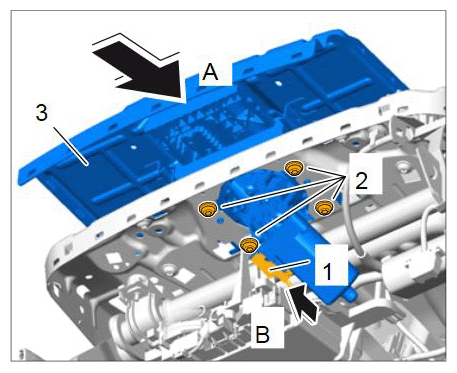

  2. Insert seat-surface extension -3-  into the seat frame -arrow A-  .
    G11982014

    Installing seat-surface extension

  3. Tighten four fastening screws -2-  on the seat-surface extension Tightening torque 7.5 Nm (5.5 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)
  4. Plug in electric plug connection -1-  (-arrow B-  ).
