Removing Rear Seat

  1. Remove ISOFIX cover.
    1. 1.1. Pull ISOFIX trims -1-  up and remove them.

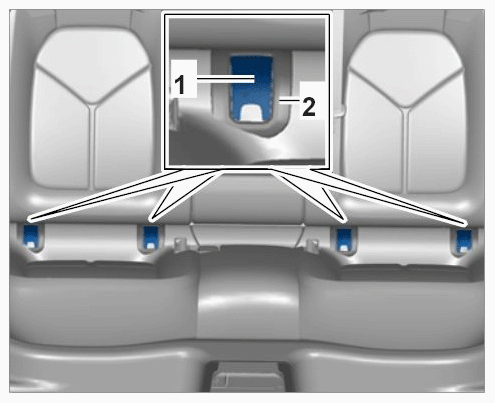

      G11981938

      Removing ISOFIX

    2. 1.2. Press ISOFIX cover -2-  down and pull it forward out of the ISOFIX clip.
  2. Pull up entire surface of rear seat -1-  at the front -arrows-  .

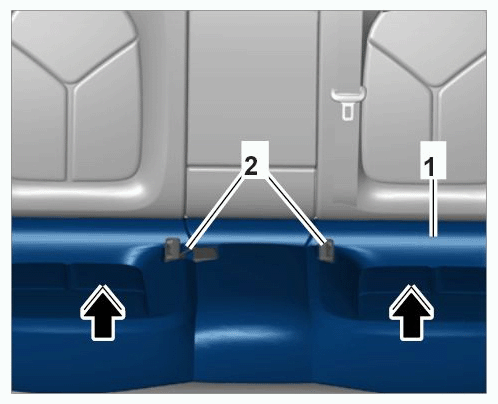

    G11981939

    Removing rear seat

  3. Guide seat-belt buckles -2-  out towards the holes in the rear seat and adjust rear seat to upright position.
  4. Disconnect electric plug connections -1-  for heating elements.
    NOTE:

    The number of electric plug connections can vary, depending on vehicle equipment.

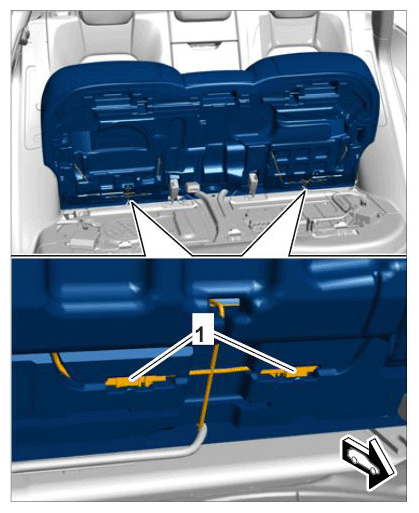

    G11981940

    Disconnecting electric plug connection

  5. Remove rear seat.
