Installing Rear Seat

1. Connect electric plug connection -1-  for heating elements.
   NOTE:

   The number of electric plug connections can vary, depending on vehicle equipment.

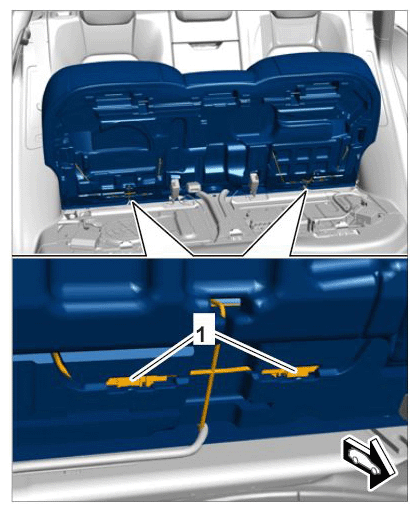

   Disconnecting electric plug connection

2. Pull seat-belt buckles -1 -  through the openings in the rear seat -2-

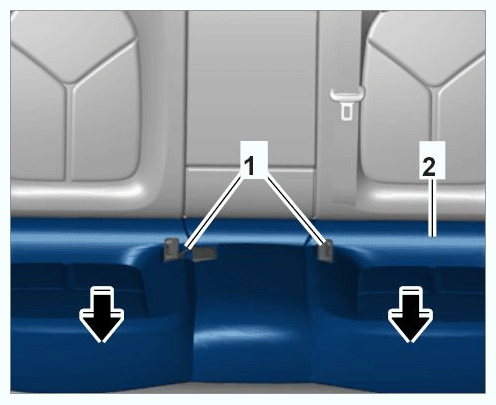

   Installing rear seat

3. Align rear seat mounting with the appropriate holders on the body and press down firmly -arrows-  .
4. Install ISOFIX covers.
   1. 4.1. Install ISOFIX covers -1-  and lock them by pushing them upwards.

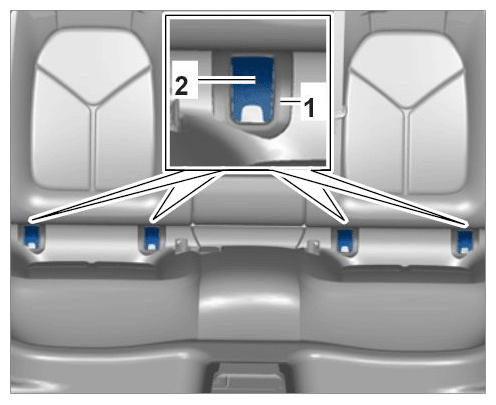

      Installing ISOFIX covers

   2. 4.2. Install ISOFIX trims -2-  .

95BAA1, 95BAB1, 95BAD1, 95BAF1, 95BAJ1, 95BAK1, 95BAS1, 95BAX1, 95BAY1, 95BAZ1

Model year as of 2014, Model year up to 2020

C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C45, C46, C96, C97, C98, C99
