Removing cover for centre loudspeaker

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
  • Some steps must be carried out automatically.
  • Some of the repair illustrations show only one side of the vehicle.
  1. Unclip cover -1-  from the dashboard.
  2. Lift up cover -1-  , release and disconnect electric plug connection -2-  on the stopwatch or compass and remove cover -1-  .

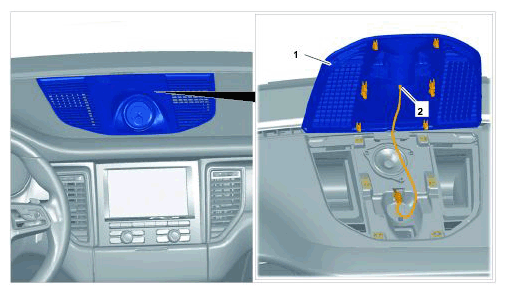

    G11981793

    Centre loudspeaker cover
