Removing Upper Part Of Centre Console Cover

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Unclip cover by pulling it up off the center console.
  2. Release electric plug connection at the 12 V socket and disconnect it.
  3. Release and disconnect electric plug connection on the parking brake controls.
  4. Remove cover.

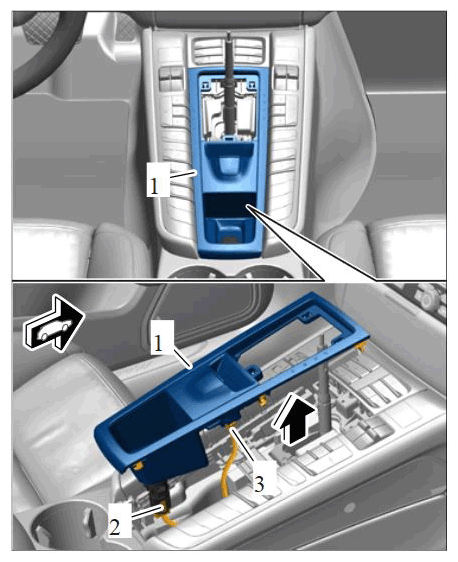

    G11981493

    Upper part of center console cover
