Removing Rear Skirt

  1. Remove rear panel -4-  . → 635619 REMOVING AND INSTALLING REAR PANEL
  2. Remove reversing lights -6-  . → 947419 REMOVING AND INSTALLING REVERSING LIGHT
  3. Remove wire harness for ParkAssist -5-  at the rear skirt -7-  . → 975919 REMOVING AND INSTALLING WIRE HARNESS FOR PARKASSIST
  4. Remove reversing camera -2-  . → 914319 REMOVING AND INSTALLING REVERSING CAMERA
  5. Remove number plate lights. → 942919 REMOVING AND INSTALLING NUMBER PLATE LIGHT
  6. Release expansion rivets -1-  and remove them.
  7. Unclip rear skirt -7-  at the rear apron -3-  and remove it.

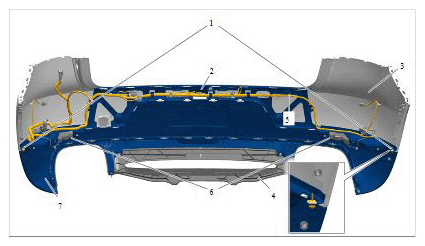

    G11984460

    Rear skirt
