Removing Rear Retaining Strip (Front Section)

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Unscrew and remove fastening nuts -1 -  .
  2. Remove retaining strip (front section) -2-  .

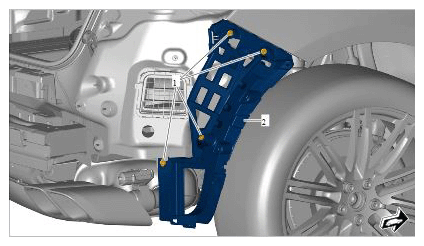

G11984458

Rear retaining strip (front section)
