Removing Rear Retaining Strip (Central Section)

  1. Unclip electric wire harness -1, 2-  on retaining strip (central section) -4-  .
  2. Release and disconnect electric plug connection -3-  .
  3. Unscrew fastening nuts -1-  and remove rear retaining strip (central section) -4-  .

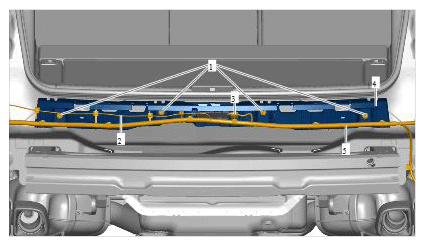

    G11984459

    Rear retaining strip (central section)
