Removing Rear Panel
NOTE:
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

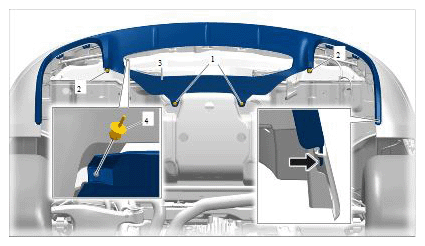

- Unscrew fastening screws -1- .
- Release expansion rivets -2, 4- and remove them.
- Guide side tabs -arrow- out of rear apron.
- Unclip and remove rear panel -3- on rear apron.
Rear panel
